Object Detection#
IoU (Intersection over Union) is calculated as the area of overlap between two bounding boxes divided by the area of their union.
\[ IoU = \frac{b_1 \cap b_2}{b_1 \cup b_2}, 0 \le IoU \le 1\]
While this is a good metric to evaluate object detection algorithms, it cannot be used as a loss function, because it is not differentiable when the boxes do not overlap.
To overcome this, the GIoU (Generalized-IoU) has been introduced
\[ GIoU = IoU - \frac{C - b_1 \cup b_2}{C} \]
It uses additionally the area of the smallest enclosing box (\(C\)) that contains both boxes, thus considering the relative positions of the boxes and solving the problem that non-overlapping bounding boxes have an \(IoU=0\) If one box is completely inside the other, GIoU will degrade to IoU and experiments have shown that convergence can become difficult.
Next, DIoU (Distance-IOU)
\[ DIoU = IoU - \frac{\rho^2}{c^2} \]
DIoU considers the distance of the two bounding boxes (\(\rho\)) with respect to the enclosing box diagonal length (\(c\)) helping in convergence.
Finally, this has been extended to include the aspect ratio of the different bounding boxes, resulting in CIoU (Complete-IoU).
\[ CIoU = IoU - \frac{\rho^2}{c^2}-\alpha v \]
\(\alpha v\) encapsulate the different aspect ratio of the bounding boxes.
import matplotlib.pyplot as plt
import matplotlib.animation
import matplotlib.patches as patches
import numpy as np
import jax.numpy as jnp
import jax
plt.rcParams["animation.html"] = "jshtml"
Intersection over Union#
def intersection(b1, b2):
x1, y1, w1, h1 = b1
x2, y2, w2, h2 = b2
xA = max(x1, x2)
yA = max(y1, y2)
xB = min(x1 + w1, x2 + w2)
yB = min(y1 + h1, y2 + h2)
return max(0, xB - xA) * max(0, yB - yA)
def union(b1, b2):
x1, y1, w1, h1 = b1
x2, y2, w2, h2 = b2
return w1 * h1 + w2 * h2 - intersection(b1, b2)
def iou(b1, b2):
x1, y1, w1, h1 = b1
x2, y2, w2, h2 = b2
return intersection(b1, b2) / union(b1, b2)
Generalized Intersection over Union#
def enclosement(b1, b2):
x1, y1, w1, h1 = b1
x2, y2, w2, h2 = b2
xA = min(x1, x2)
yA = min(y1, y2)
xB = max(x1 + w1, x2 + w2)
yB = max(y1 + h1, y2 + h2)
return (xB - xA) * (yB - yA)
def giou(b1, b2):
R = (enclosement(b1, b2) - union(b1, b2)) / enclosement(b1, b2)
return iou(b1, b2) - R
Distance Intersection over Union#
def distance(b1, b2):
x1, y1, w1, h1 = b1
x2, y2, w2, h2 = b2
center_b1 = (x1 + w1 / 2, y1 + h1 / 2)
center_b2 = (x2 + w2 / 2, y2 + h2 / 2)
x1, y1 = center_b1
x2, y2 = center_b2
return jnp.sqrt(jnp.square(x1 - x2) + jnp.square(y1 - y2))
def enclosing_box_diagonal(b1, b2):
x1, y1, w1, h1 = b1
x2, y2, w2, h2 = b2
xA = min(x1, x2)
yA = min(y1, y2)
xB = max(x1 + w1, x2 + w2)
yB = max(y1 + h1, y2 + h2)
return jnp.sqrt(jnp.square(xB - xA) + jnp.square(yB - yA))
def diou(b1, b2):
R = jnp.square(distance(b1, b2))/jnp.square(enclosing_box_diagonal(b1, b2))
return iou(b1, b2) - R
Complete Intersection over Union#
def ciou(b1, b2):
x1, y1, w1, h1 = b1
x2, y2, w2, h2 = b2
v = 4 * jnp.square(jnp.arctan(w1 / h1) -
jnp.arctan(w2 / h2)) / jnp.square(jnp.pi)
alpha = v / (1 - iou(b1, b2) + v)
R = v * alpha
return diou(b1, b2) - R

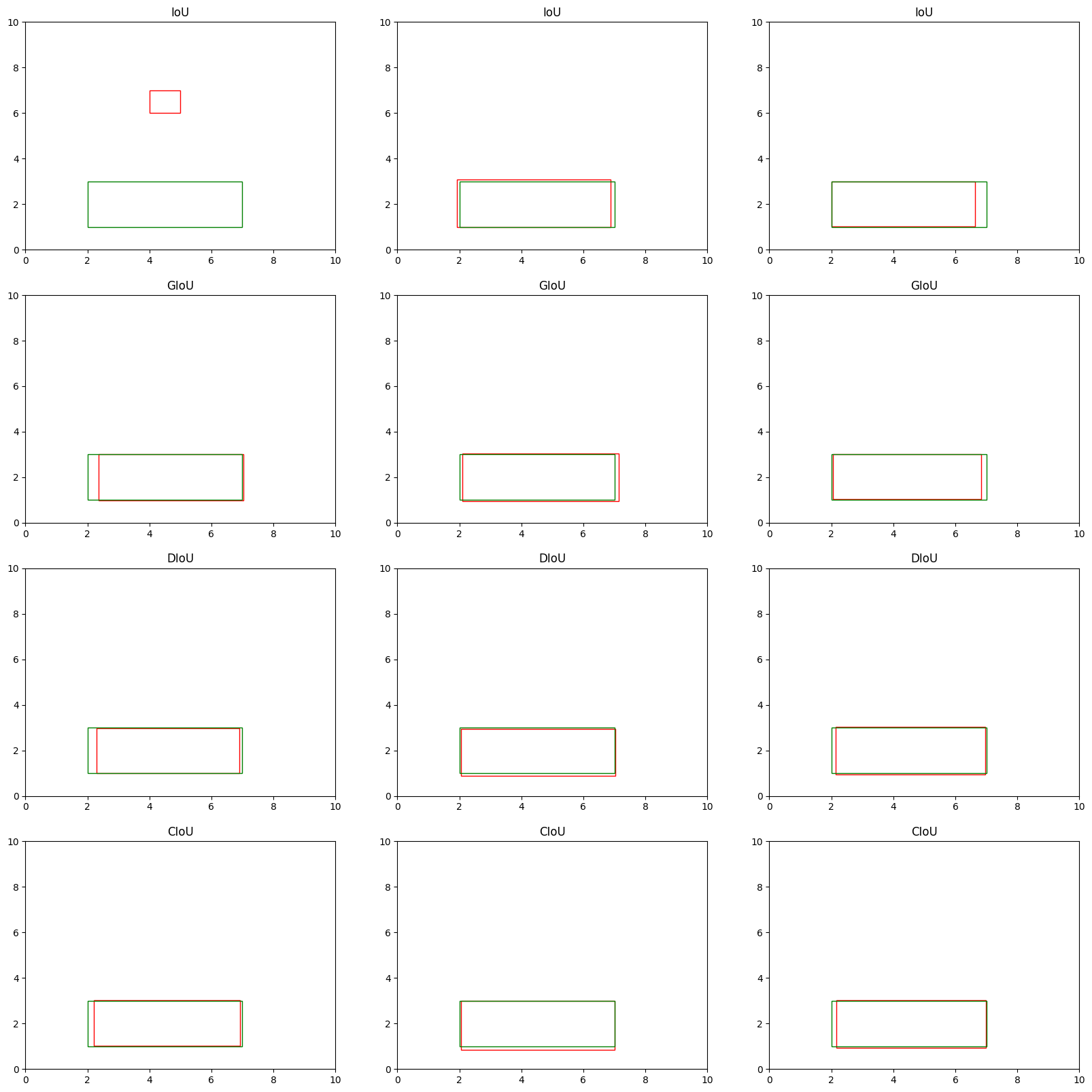

Evaluation#
class MetricFn:
def __init__(self, fn, name):
self.fn = fn
self.name = name
def __call__(self, box, target_box):
return self.fn(box, target_box)
class Sample:
def __init__(self, box, target_box, metric_fn, axis):
self.box = box
self.target_box = target_box
self.metric_fn = metric_fn
self.boxes = [box]
self.ax = axis
self.ax.set_title(metric_fn.name)
self.ax.set_xlim(0, 10)
self.ax.set_ylim(0, 10)
self.patch = patches.Rectangle(
(box[0], box[1]), box[2], box[3], linewidth=1, edgecolor='r', facecolor='none')
self.target_patch = patches.Rectangle(
(target_box[0], target_box[1]), target_box[2], target_box[3], linewidth=1, edgecolor='g', facecolor='none')
self.ax.add_patch(self.patch)
self.ax.add_patch(self.target_patch)
def animate(self, t):
if t < len(self.boxes):
b = self.boxes[t]
self.patch.set_width(b[2])
self.patch.set_height(b[3])
self.patch.set_xy((b[0], b[1]))
return self.patch
def evaluate(self):
while self.metric_fn(self.box, self.target_box) < 0.9:
gradient = jax.grad(
lambda b: 1-self.metric_fn(b, self.target_box))(self.box)
self.box -= 0.3 * gradient
self.boxes.append(self.box)
if jnp.isnan(jnp.sum(gradient)):
print('grad is nan')
if jnp.isnan(jnp.sum(gradient)) or jnp.sum(jnp.abs(gradient)) < 0.001:
break
return self.boxes
class Evaluator:
def __init__(self, initial_boxes, target_box, metric_fns):
self.fig, self.ax = plt.subplots(
len(metric_fns), len(initial_boxes), figsize=(20, 20))
self.samples = []
if len(metric_fns) == 1 and len(initial_boxes) == 1:
self.ax = np.array([[self.ax]])
elif len(metric_fns) == 1:
self.ax = self.ax.reshape(1, -1)
elif len(initial_boxes) == 1:
self.ax = self.ax.reshape(-1, 1)
for i, metric_fn in enumerate(metric_fns):
for j, initial_box in enumerate(initial_boxes):
self.samples.append(
Sample(initial_box, target_box, metric_fn, self.ax[i, j]))
def animate(self, t):
return [sample.animate(t) for sample in self.samples]
def evaluate(self):
for sample in self.samples:
sample.evaluate()
maximum = max([len(sample.boxes) for sample in self.samples])
return matplotlib.animation.FuncAnimation(self.fig, func=self.animate, frames=maximum, blit=True)
metric_fns = [
MetricFn(iou, 'IoU'),
MetricFn(giou, 'GIoU'),
MetricFn(diou, 'DIoU'),
MetricFn(ciou, 'CIoU'),
]
bb = [
jnp.array([4, 6, 1, 1], dtype=jnp.float32),
jnp.array([1, 2, 5, 5], dtype=jnp.float32),
jnp.array([2, 1, 3, 1], dtype=jnp.float32)]
evaluator = Evaluator(bb, jnp.array([2, 1, 5, 2], dtype=jnp.float32), metric_fns)
evaluator.evaluate()
